Gate Valve

EXP

API 6D EXPANDING GATE VALVE (API CERTIFICATE 6D)

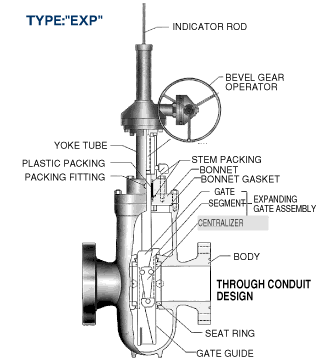

TYPE:"EXP"
THROUGH CONDUIT DESIGN

The "EXP" type gate valves feature a through conduit design. When the valves is completely open, the port of the valve becomes a fully cylindrical bore allowing for the passage of pigs and scrapers. The full open bore reduces flow turbulence and pressure drop through the valve.

Size   NPS2~NPS36
Class  300~2500

API 6A EXPANDING GATE VALVE (API CERITIFICATE 6A)

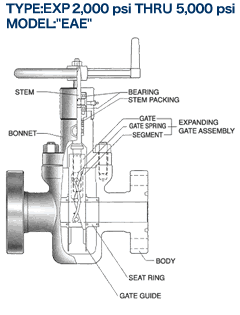

TYPE:EXP 2,000 psi THRU 5,000 psi
TYPE:EXP 10,000 psi & 15,000 psi

Size and Rating
2 1/16" ~7 1/16" 2000~6500 psi
1 3/16" ~4 1/16" 10000~15000 psi
